Vật tư thiết bị đường ống HDPE

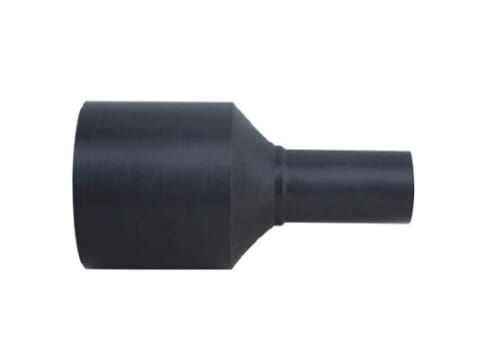

Phụ kiện: côn thu hàn ống hdpe
Xuất xứ: Việt Nam
Bảo hành: 12 tháng
| Kích thước | Áp lực PN10 | Áp lực PN16 | |
| (mm) | (Độ dày mm) | (Độ dày mm) | |
| 75 x 50 | 4.5 x 3.0 | 6.8 x 4.6 | |
| 75 x 63 | 4.5 x 3.8 | 6.8 x 5.8 | |
| 90 x 50 | 5.4 x 3.0 | 8.2 x 4.6 | |
| 90 x 63 | 5.4 x 3.8 | 8.2 x 5.8 | |
| 90 x 75 | 5.4 x 4.5 | 8.2 x 6.8 | |
| 110 x 50 | 6.6 x 3.0 | 10.0 x 4.6 | |
| 110 x 63 | 6.6 x 3.8 | 10.0 x 5.8 | |
| 110 x 75 | 6.6 x 4.5 | 10.0 x 6.8 | |
| 110 x 90 | 6.6 x 5.4 | 10.0 x 8.2 | |
| 125 x 63 | 7.4 x 3.8 | 11.4 x 5.8 | |
| 125 x 75 | 7.4 x 4.5 | 11.4 x 6.8 | |
| 125 x 90 | 7.4 x 5.4 | 11.4 x 8.2 | |
| 125 x 110 | 7.4 x 6.6 | 11.4 x 10.0 | |
| 140 x 63 | 8.3 x 3.8 | 12.7 x 5.8 | |
| 140 x 75 | 8.3 x 4.5 | 12.7 x 6.8 | |
| 140 x 90 | 8.3 x 5.4 | 12.7 x 8.2 | |
| 140 x 110 | 8.3 x 6.6 | 12.7 x 10.0 | |
| 140 x 125 | 8.3 x 7.4 | 12.7 x 11.4 | |
| 160 x 63 | 9.5 x 3.8 | 14.6 x 5.8 | |
| 160 x 75 | 9.5 x 4.5 | 14.6 x 6.8 | |
| 160 x 90 | 9.5 x 5.4 | 14.6 x 8.2 | |
| 160 x 110 | 9.5 x 6.6 | 14.6 x 10.0 | |
| 160 x 125 | 9.5 x 7.4 | 14.6 x 11.4 | |
| 160 x 140 | 9.5 x 8.3 | 14.6 x 12.7 | |
| 180 x 90 | 10.7 x 5.4 | 16.4 x 8.2 | |
| 180 x 110 | 10.7 x 6.6 | 16.4 x 10.0 | |
| 180 x 125 | 10.7 x 7.4 | 16.4 x 11.4 | |
| 180 x 140 | 10.7 x 8.3 | 16.4 x 12.7 | |
| 180 x 160 | 10.7 x 9.5 | 16.4 x 14.6 | |
| 200 x 63 | 11.9 x 3.8 | 18.2 x 5.8 | |
| 200 x 75 | 11.9 x 4.5 | 18.2 x 6.8 | |
| 200 x 90 | 11.9 x 5.4 | 18.2 x 8.2 | |
| 200 x 110 | 11.9 x 6.6 | 18.2 x 10.0 | |
| 200 x 125 | 11.9 x 7.4 | 18.2 x 11.4 | |
| 200 x 160 | 11.9 x 9.5 | 18.2 x 14.6 | |
| 200 x 180 | 11.9 x 10.7 | 18.2 x 16.4 | |
| 225 x 90 | 13.4 x 5.4 | 20.5 x 8.2 | |
| 225 x 110 | 13.4 x 6.6 | 20.5 x 10.0 | |
| 225 x 125 | 13.4 x 7.4 | 20.5 x 11.4 | |
| 225 x 160 | 13.4 x 9.5 | 20.5 x 14.6 | |
| 225 x 200 | 13.4 x 11.9 | 20.5 x 18.2 | |
| 250 x 90 | 14.8 x 5.4 | 22.7 x 8.2 | |
| 250 x 110 | 14.8 x 6.6 | 22.7 x 10.0 | |
| 250 x 125 | 14.8 x 7.4 | 22.7 x 11.4 | |
| 250 x 160 | 14.8 x 9.5 | 22.7 x 14.6 | |
| 250 x 200 | 14.8 x 11.9 | 22.7 x 18.2 | |
| 250 x 225 | 14.8 x 13.4 | 22.7 x 20.5 | |
| 280 x 110 | 16.6 x 6.6 | 25.4 x 10.0 | |
| 280 x 160 | 16.6 x 9.5 | 25.4 x 14.6 | |
| 280 x 200 | 16.6 x 11.9 | 25.4 x 18.2 | |
| 280 x 225 | 16.6 x 13.4 | 25.4 x 20.5 | |
| 280 x 250 | 16.6 x 14.8 | 25.4 x 22.7 | |
| 315 x 90 | 18.7 x 5.4 | 28.6 x 8.2 | |
| 315 x 110 | 18.7 x 6.6 | 28.6 x 10.0 | |
| 315 x 125 | 18.7 x 7.4 | 28.6 x 11.4 | |
| 315 x 160 | 18.7 x 9.5 | 28.6 x 14.6 | |
| 315 x 200 | 18.7 x 11.9 | 28.6 x 18.2 | |
| 315 x 225 | 18.7 x 13.4 | 28.6 x 20.5 | |
| 315 x 250 | 18.7 x 14.8 | 28.6 x 22.7 | |
| 315 x 280 | 18.7 x 16.6 | 28.6 x 25.4 | |
| 355 x 110 | 21.1 x 6.6 | 32.2 x 10.0 | |
| 355 x 160 | 21.1 x 9.5 | 32.2 x 14.6 | |
| 355 x 200 | 21.1 x 11.9 | 32.2 x 18.2 | |
| 355 x 250 | 21.1 x 14.8 | 32.2 x 22.7 | |
| 355 x 315 | 21.1 x 18.7 | 32.2 x 28.6 | |
| 400 x 110 | 23.7 x 6.6 | 36.3 x 10.0 | |
| 400 x 160 | 23.7 x 9.5 | 36.3 x 14.6 | |
| 400 x 200 | 23.7 x 11.9 | 36.3 x 18.2 | |
| 400 x 225 | 23.7 x 13.4 | 36.3 x 20.5 | |
| 400 x 250 | 23.7 x 14.8 | 36.3 x 22.7 | |
| 400 x 315 | 23.7 x 18.7 | 36.3 x 28.6 | |
| 400 x 355 | 23.7 x 21.1 | 36.3 x 32.2 | |
| 450 x 110 | 26.7 x 6.6 | 40.9 x 10.0 | |
| 450 x 160 | 26.7 x 9.5 | 40.9 x 14.6 | |
| 450 x 200 | 26.7 x 11.9 | 40.9 x 18.2 | |
| 450 x 225 | 26.7 x 13.4 | 40.9 x 20.5 | |
| 450 x 250 | 26.7 x 14.8 | 40.9 x 22.7 | |
| 450 x 315 | 26.7 x 18.7 | 40.9 x 28.6 | |
| 450 x 355 | 26.7 x 21.1 | 40.9 x 32.2 | |
| 450 x 400 | 26.7 x 23.7 | 40.9 x 36.3 | |
| 500 x 200 | |||
| 500 x 250 | |||
| 500 x 315 | |||
| 500 x 355 | |||
| 500 x 400 | |||
| 500 x 450 | |||
| 630 x 200 | |||
| 630 x 250 | |||
| 630 x 315 | |||
| 630 x 355 | |||
| 630 x 400 | |||
| 630 x 450 | |||
| 630 x 500 | |||
| 630 x 560 |
